Views#

Overview#

Sparkline tiles for every benchmark, filtered by the published params (machine, branch, python, …). Search matches name or type.

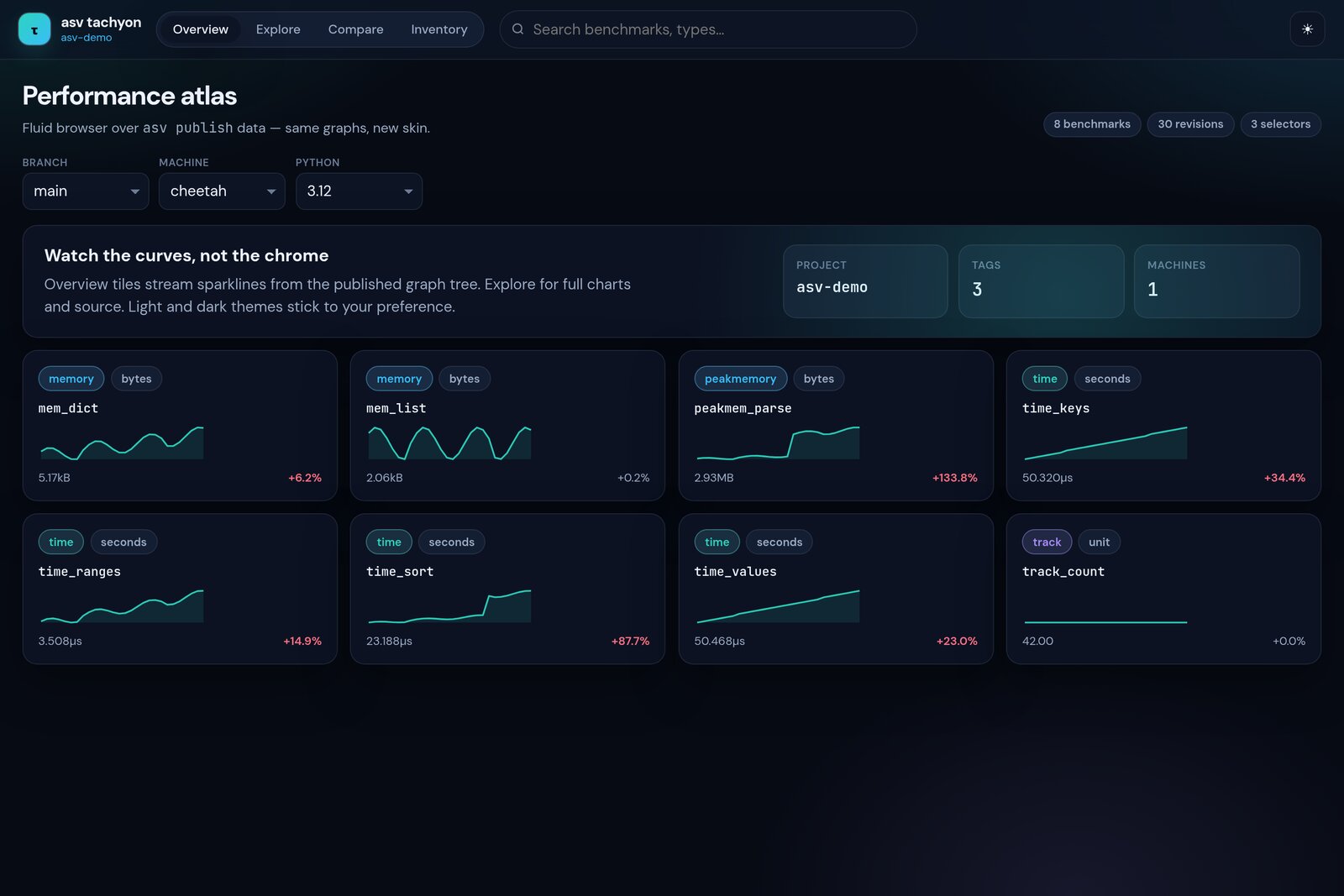

Overview view

Explore#

Full uPlot series for a single benchmark. Env filters (machine, branch, python, …) are preserved when switching benchmarks; the URL hash records view, selected bench, and filters for shareable links.

When a benchmark declares params, each flat param combination is a separate series with a stable color (hiding a series does not reshuffle the palette). Toggle series from the param chip row.

Compare#

Spyglass-style ratios with the same factor semantics as asv compare / asv-spyglass compare-many. Modes:

  • Env columns — select N entries from graph_param_list (first selected is the baseline; each further env is a contender column with value + ratio)

  • Revision pair — two commits on one env surface

Factor default is 1.1. Click a row for an overlay chart of the first two env series.

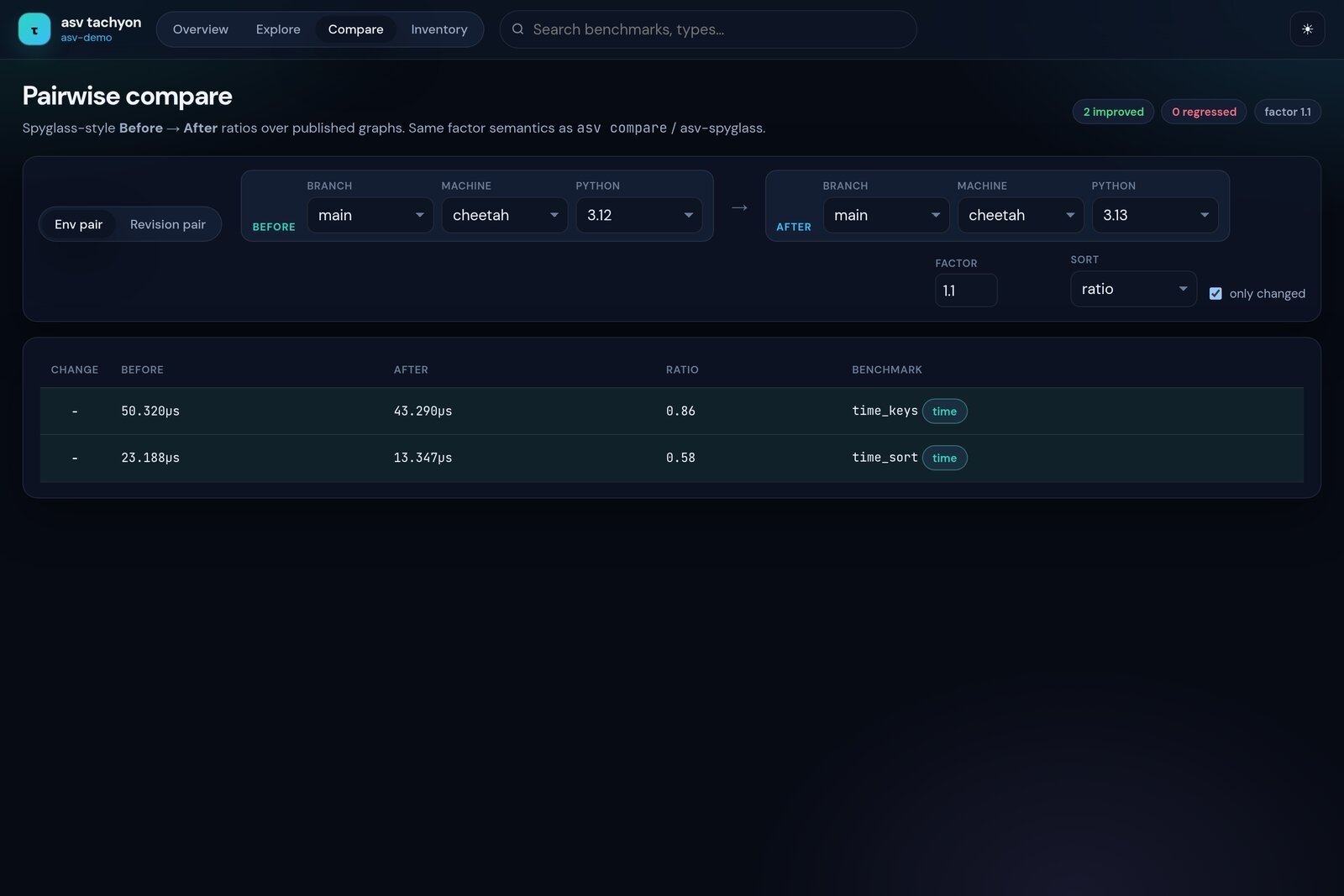

Compare view

Regressions#

Loads optional regressions.json (same 7-tuple feed as the stock ASV site). Factor slider / number input filters rows by last/best. Click a row to open Explore with the env filters and param index applied.

Inventory#

SBOM-style lock surface (mirrors asv-spyglass env-diff / eb-stack stack_diff):

  • Published envs — diff params + machine facts from index.json

  • Result files — drop two raw ASV result JSON files for the full requirements matrix

Classifies each component as added, removed, version-bumped, or unchanged, with KPI cards and a stacked mix bar.

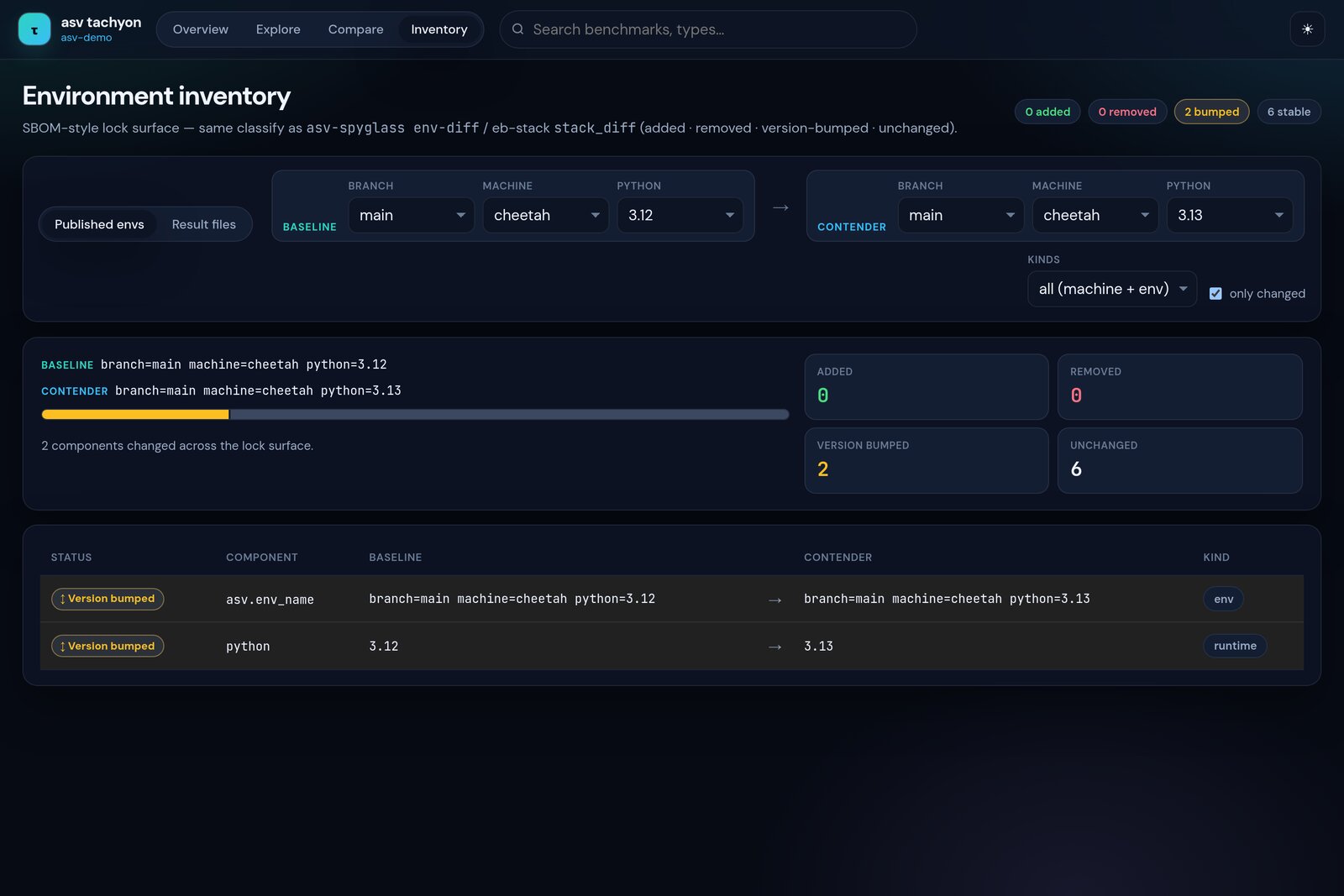

Inventory view Inventory with all kinds

All kinds also surfaces env name and machine attributes when they differ.
